Radini Croissant module
Expand your product range
Radini enables you to produce croissants with all kinds of dough, such as:
- Brioche dough
- Bread dough
- Sourdough
Yeast-leavened (non) laminated dough possibly with
- butter
- margarine
- shortening or another type of fat
Croissants in various shapes, like:
- Mini or huge croissants
- Straight croissants or manually shaped into a crescent shaped or pinched croissants
Fill and decorate the croissants with the filling/topping of your choice.
The Radini is controlled from the HMI on the laminator or make up section. Which features a user-friendly system. The croissant modules are easy to position and to remove because they are mobile and interlocked to each other. Which ensures good accessibility during cleaning as well. Because recipes are stored in the HMI and uploaded after a recipe change, the tooling has fixed positions that guarantee the same position for consistent and repeatable products.
Specifications
- Working width: 800 mm
- Capacity: up to 40 rows per minute
- Circa 4,800 croissants on 2 rows per hour
- Circa 9,600 croissants on 4 rows per hour
ACHIEVE OPTIMAL VERSATILITY; ADD CROISSANTS TO YOUR PRODUCT RANGE

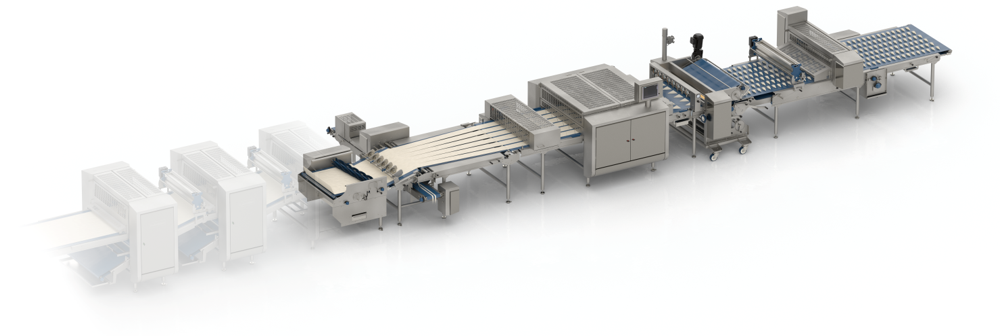

After the laminator created a consistent and uniform dough sheet. The dough sheet is transported to the universal pastry make up line. A brief description of the following process: the dough sheet is trimmed on both sides, cut into lanes, and spread by means of an overhead spreading module that is placed over the universal line. If the option filled croissants is required, a filling is deposited. The triangles are cut and transferred to the croissant turning module.
1. Croissant turning and aligning
After the products are cut to size, they are turned and aligned with the croissant base to the front, preparing the dough pieces for the rolling and ensuring consistent and repeatable products. The Radini croissant module can process croissants in many shapes and forms, from big to small, long to short and thick to slim.
2. Croissant moulding
Moulding is the key to a high-quality croissant. Radini offers different moulders for this precise process. Which moulder fits your requirements depends on the product you want to produce.
For example, do you want to make only unfilled croissants or unfilled-and-filled croissants?
What type of dough does the product consist of? Laminated yeast croissant dough with butter? Bread dough like Salzstange, Gipfel, Pao Frances or Kornspitz? Or a sweet yeast dough which is used to produce of a typical regional product such as the reihweck or reihenweck.
Mini croissant
Added value
Our croissant module and croissant lines
Radini Croissant module
- Approximately 4,800 croissants (2 rows) P/H
- Approximately 9,600 croissants (4 rows) P/H
- Working width: 800 mm
Rademaker compact
- 12,000 pieces per hour at 60 grams
- 20 up to 75 grams per unit
- Working width: 800 mm
Rademaker industrial
- 56,000 pieces per hour at 60 grams
- 7 to 150 grams each
- Working width: 800 to 1,400 mm
Get in touch
On our website, you will find only part of our offer. In case of questions or specific wishes such as gluten-free production, producing vegan pastries, or specific shapes. Feel free to contact us via +31 (0)345 543 543 or office@rademaker.nl.
